Ultra Tiny BNC Bulkhead Connector for 12 GHz PCB Mounting

Compact 12 GHz RF Coaxial Connector Manufacturer for PCB Design

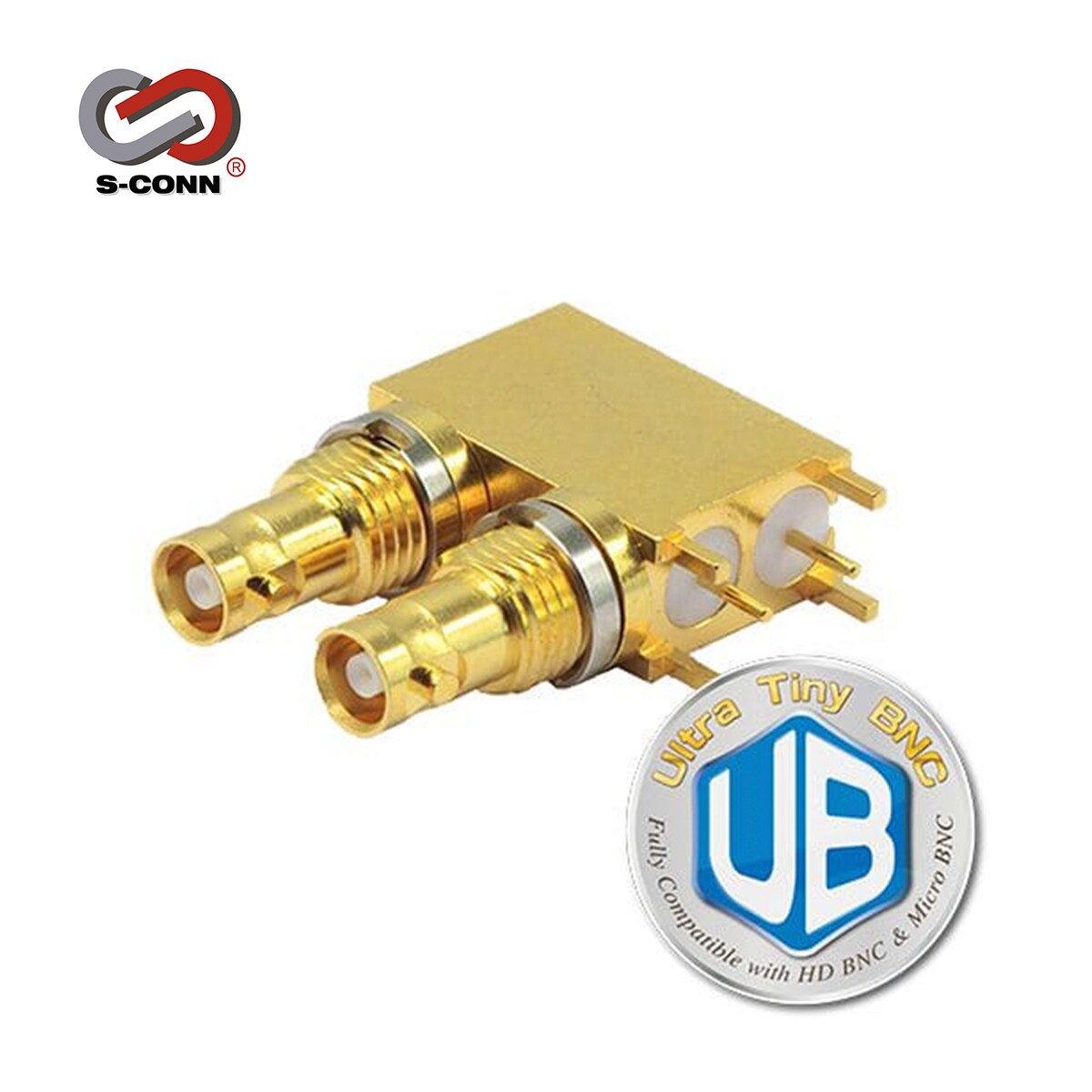

Engineered for high-frequency interconnection, compact 12 GHz RF coaxial connector manufacturer for PCB design centers on the UB205 ultra tiny BNC dual bulkhead jack for PCB mounting. The 75 ohm design operates from 0 to 12 GHz and is 51% smaller than standard BNC, supporting space-saving PCB layouts. Brass bodies with gold plating, a PTFE insulator, and a gold-plated beryllium copper inner contact define the specified construction, with an operating range from -65 °C to 165 °C. Electrical performance complies with SMPTE ST 2082-1. This RF coaxial connector manufacturer supports OEM and ODM customization from design and machining through final assembly. Send your requirements for review and quotation.

BNC Bulkhead Connector Features

• BNC dual bulkhead jack.
• 51% smaller than standard BNC.
• Supports 75 ohm impedance.
• Operates from 0 to 12 GHz.
• Designed for PCB mounting.
• Gold-plated brass body with PTFE insulation.

Contact Us

Maximize PCB Space Efficiency

The UB205 is 51% smaller than standard BNC, helping designers fit 75 ohm connectivity into compact PCB layouts.

Extend High Frequency Design Capability

A 0 to 12 GHz range with specified return loss supports RF designs requiring defined performance across multiple bands.

FAQ

Can material or plating requirements be customized?

The specified bodies use brass with gold plating, the insulator uses PTFE, and other material or plating needs can be stated at the RFQ stage.

What operating temperature range does the UB205 support?

The UB205 is specified for operation across a temperature range from -65 °C to 165 °C.

Which standards support the product and quality system?

The listed electrical performance complies with SMPTE ST 2082-1, while the company management system is certified to ISO 9001 and ISO 14001.

Built around manufacturing experience and flexible OEM and ODM support, compact 12 GHz RF coaxial connector manufacturer for PCB design connects procurement needs with structural design, precision turning, parts machining, and final assembly. As an RF coaxial connector manufacturer, the team can support a BNC bulkhead connector or PCB mount BNC connector project through standard modifications or new custom development. ISO 9001 and ISO 14001 certified management and quality Inspection Plan practices support consistent execution while flexible customization helps buyers evaluate competitive sourcing options. Send your RFQ requirements to discuss a suitable interconnection solution.
